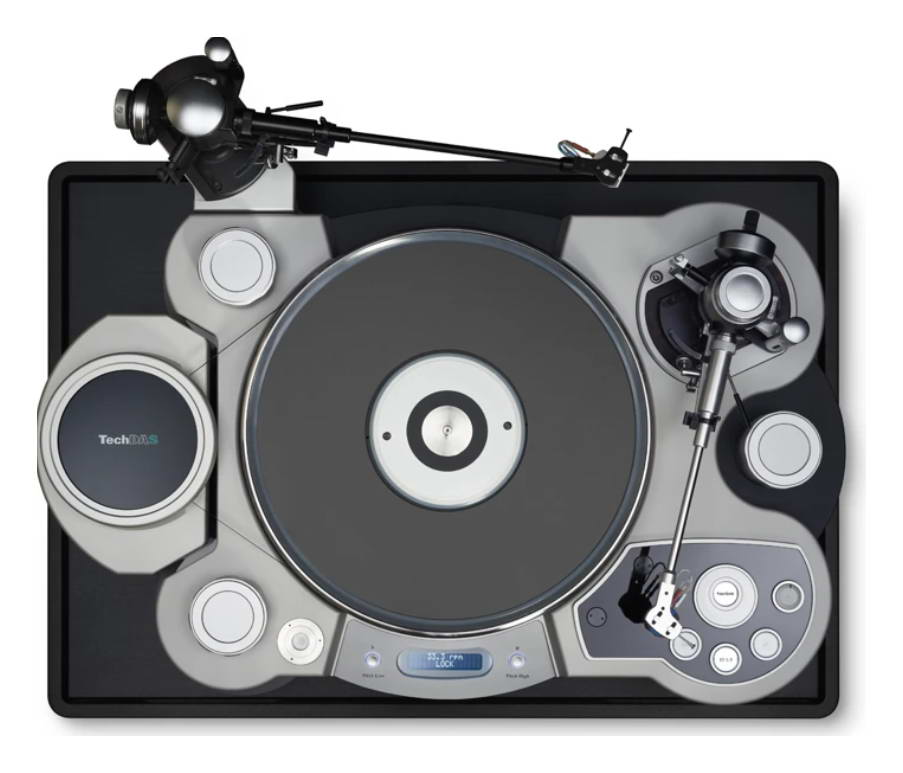

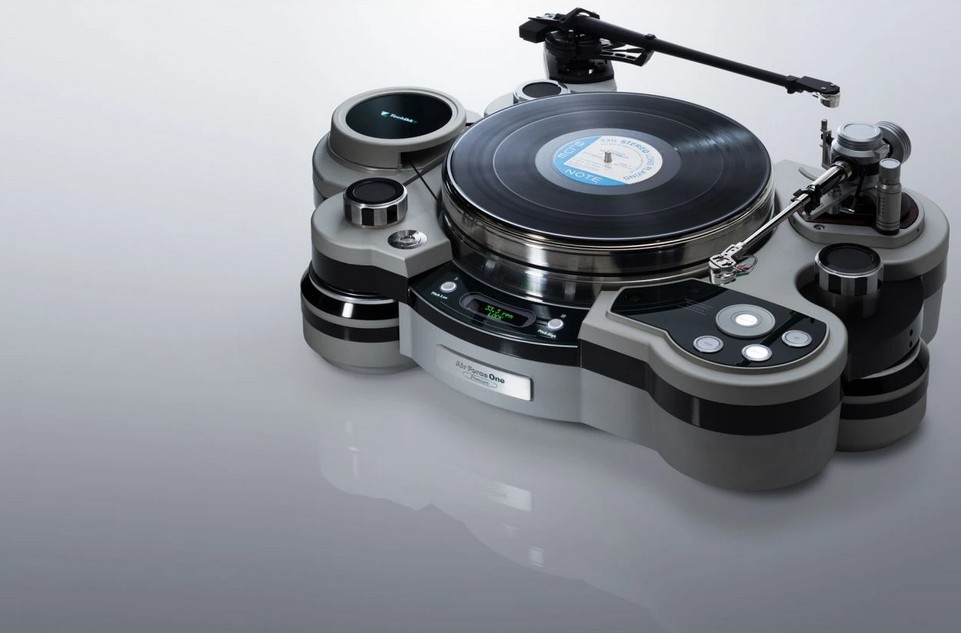

TechDAS Air Force Premium
The top-of-the-line model for the TechDAS Air Force turntable series with new integrated concepts and technologies further refining the sound, user-friendliness and external finish.
The Air Force One Premium analog turntable by TechDAS ushers in exquisite design concept to positively exploit the aerodynamic force equivalent to sound energy rather than springs or buffer materials. It is the ultimate mechanism based on a vibration damping design using “Air Force” and utilizes only high-precision finished parts with enough mass to completely avoid any “colour” to the sound, nothing is added or removed. Through the aerodynamic instrumentality of “Air Force” the real magnitude and essence of ultimate analog playback is now a reality. Adverse effects caused by various obstructive oscillations, which used to be arch-nemesis of analog turntables has been thoroughly wiped out by the Air Force.
Price range: €99,999.00 through €111,999.00
Επικοινωνήστε μαζί μας
Integrated concepts & technologies
The top-of-the-line model for TechDAS Air Force Turntable series has new integrated concepts and technologies refining the sound, user-friendliness and external finish. Air Force One Premium consists of three units: main unit (including motor), power supply / pump unit and air condenser / air charger unit.
Two models available:
Air Force One Premium with A7075 Upper Platter
Air Force One Premium with Titanium Upper Platter
Air Force” has three design concepts: Air bearing / Disc suction / Air suspension.
It is important for a turntable to achieve accurate and noise free stable rotation, which requires a platter with significant mass. Without compensation, over time this necessarily heavy-weight platter can cause deterioration in the bearings surfaces and cause friction vibrations or degradation of rotation accuracies.
Refined main chassis aesthetics
The main chassis of the Premium employs a gloss finish which is achieved by surface polishing a black layer of aluminum. This deep gloss finish adds to the charm of the appearance.
Option of Titanium or Gloss Finished Super Duralumin (A7075) Upper Platter
For the upper platter of Premium, there are two options: Super Duralumin A7075 and Titanium. Please specify which option you prefer when ordering.
Tapered Spindle and Disc Stabilizer
Air Force One Premium features a tapered spindle to absorb any swaying of an off center LP. A disc stabilizer comes with the turntable as a standard accessory that will fit perfectly in with the spindle.
Επιπλέον πληροφορίες
| Κατασκευαστές | |
|---|---|
| Phono | |
| Κεφαλή |
| MAIN BODY | |
| Drive System | Belt Drive, Surface polished polyurethane fiber flat belt |
| Platter: Main Platter | SUS316L Non-magnetic forged stainless steel. Weight 19 kg |
| Platter: Upper Platter | Choice of A7075 (4 kg) or Pure TITANIUM (6 kg) |
| Motor | AC synchronous motor. Rotating speed controlled by DC amplifier. |
| Chassis | Three different material sandwiched structure |
| Rotation Speed | 33-1/3 rpm / 45 rpm with precise speed adjustment function |
| Wow & Flutter | below 0.03% (W.R.M.S) |
| Minimum Dimensions for setting up | 680 (W) x 480 (D) mm |
| Total Weight | 73 kg |
| POWER SUPPLY & PUMP UNIT | |
| Power Supply / Pump Unit | Power consumption: 60W Dimension and weight : 430(W) x 160(H) x 240(D) mm, 10kg |
| Air Condenser / Air Charger Unit | Dimension: 430 (W) x 160 (H) x 240 (D) mm, 10kg |
| ACCESSORIES | |
| Accessories Supplied | Tonearm base x 1 (drilled for specified tonearm) Platter cover “The Platter Top” x 1 TechDAS Disc Stabilizer x 1 AC cable x 1 |
| Optional Items & Accessories | Extra Tonearm Base (Stainless, Pure Titanium, Aluminum) Air Force Mounting Rack |
