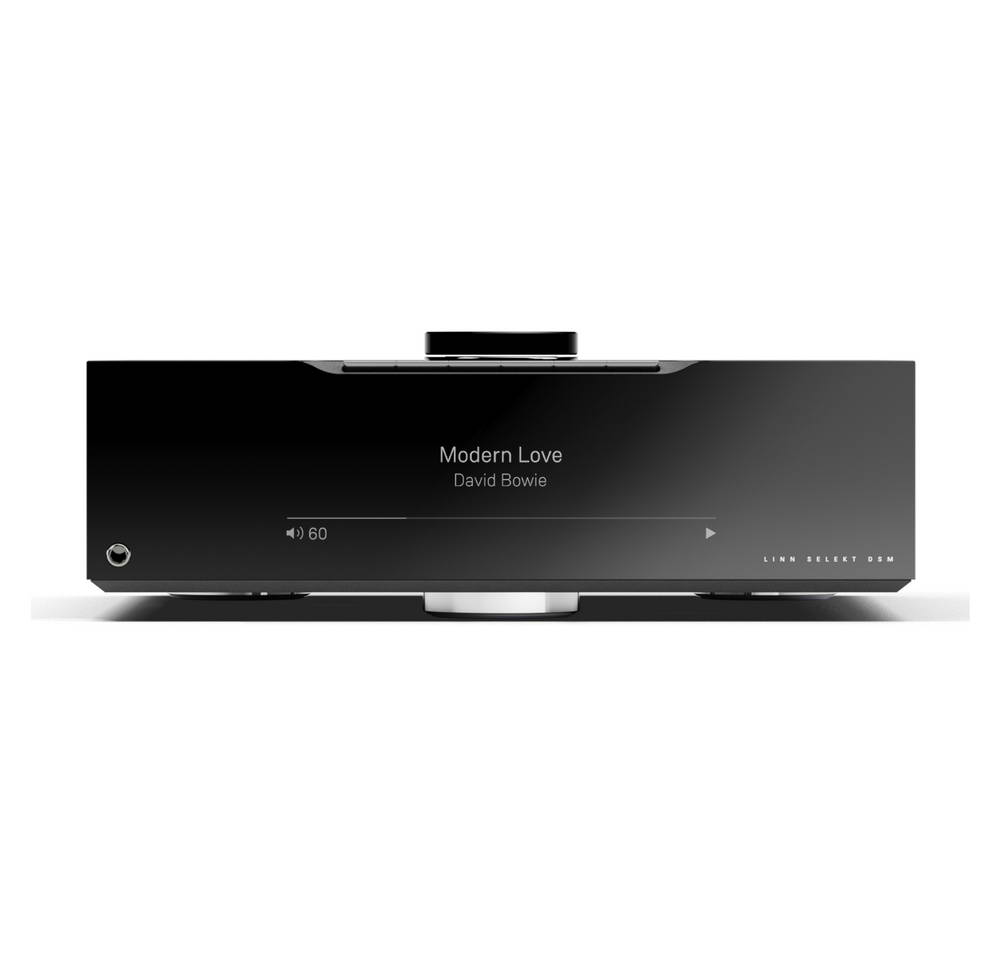

LINN Selekt DSM Classic Hub
Selekt DSM: Classic Hub
A high-performance, folded-aluminium design
Classic Hub features powder-coated, folded aluminium casework mounted atop an 8mm-thick, machined-aluminium base. It is available in either a subtly textured black or flat silver finish.
€6,700.00
Παράδοση σε 1-3 μέρες
Classic Hub possesses a tactile and eye-catching central control dial, and contains hidden LEDs that shine through with a silken glow to indicate volume. There is an array of six machined stainless-steel ‘smart’ buttons for one-touch access to favourite playlists, artists, albums, or inputs. With their intuitive operation, these interfaces encourage physical interaction with your system.
A broad range of connectivity ensures that Classic Hub can receive and deliver audio from any source imaginable; with a high-performance, integrated, analogue-to-digital conversion stage accepting anything from turntables to CD players, and a host of digital connections allowing connection to video streaming devices, games consoles, and Blu-ray players – ensuring you get tremendous sound quality from anything you connect to your Selekt DSM.
Classic Hub has outputs dedicated to providing bass reinforcement to a subwoofer. There is also an integrated headphone amp with 1/4” jack output for personal listening sessions at home.
Key features
- Aluminium construction with acrylic fascia
- Cut-glass control dial
- Six programmable machined stainless-steel ‘smart’ buttons
- Wide range of inputs accept virtually any source
- High-performance MM/MC/Line-In Analogue Phono Stage
- Powered by Utopik – Linn’s best power supply design ever
https://www.linn.co.uk/network-music-players/selekt-dsm-classic-hub
Configurable, modular, network music player with inputs for separate digital and analogue sources; plus configuration options including (but not limited to) source-only, source + amps, and a variety of Surround Sound applications. Optional upgrade to Katalyst DAC, or peak performance with Organik DAC.
| Specification | |
| Audio Formats | FLAC, Apple Lossless, WAV, DSD (64/128/256), MP3, WMA (except lossless), AIFF, AAC, OGG |
| Resolution | Up to 24-bit/384kHz |
| Integrated Services | TIDAL, Qobuz, Spotify Connect, Deezer, AirPlay 2, Roon Ready, airable, TuneIn, Calm Radio |
| Power Supply | Utopik |
| HDMI Spec | HDMI 2.0 – Supports: 4k resolution @ 60 Hz, 4:4:4, HDCP 2.2, HDR, ARC, eARC, CEC, data rate 18Gbps |
| Ethernet | x1 |
| Exakt Link | x2 |
| Wifi | Yes (802.11ac) |
| Bluetooth | Yes (4.2) |
| Construction | Selekt DSM: Classic – Precision-machined and -folded aluminium Selekt DSM: Edition – Precision-machined and bolted aluminium plate |
| Finish | Silver or Black anodised |
| Inputs | |
| HDMI (optional upgrade) | x4 |
| HDMI eARC | x1 |
| Toslink | x2 |
| SPDIF | x2 (x1 configurable in/out) |
| USB (Type B) | x1 |
| Line Level Phono (RCA) | x1 |
| MM Phono (RCA) | x1 |
| MC Phono (RCA) | x1 |
| Outputs | |
| Binding-post / Banana / Spade (optional upgrade) | Up to x6 (configurable for surround channels) |
| Balanced XLR (optional upgrade) | Up to x6 (configurable for surround channels) |
| Unbalanced RCA (optional upgrade) | Up to x6 (configurable for surround channels) |
| RCA Subwoofer Out | x2 |
| SPDIF | x1 (configurable in/out) |
| HDMI 2.0 (optional upgrade) | x1 |
| 1/4 inch Headphone Jack | x1 |
| With HDMI Switching Module | |
| HDMI Inputs | x4 |
| HDMI Out | x1 (doubles as eARC) |
| With Surround Sound Upgrade (DSP and HDMI switching modules) | |
| Surround Sound Processing | Up to 7.2 |
| Supported Formats | DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS, Dolby TrueHD, Dolby Digital Plus, Dolby Digital and PCM |
| Dimensions | |
| Selekt DSM: Classic Hub | |
| Width | 355 mm |
| Height | 122.5 mm |
| Depth | 355 mm |
| Weight | 8.05 kg – 10.85 kg |
| Selekt DSM: Edition Hub | |
| Width | 355 mm |
| Height | 119 mm |
| Depth | 355 mm |
| Weight | 9.5 kg – 12.3 kg |
