CLEARAUDIO Diamond Jubilee MC
Hardness meets precision.

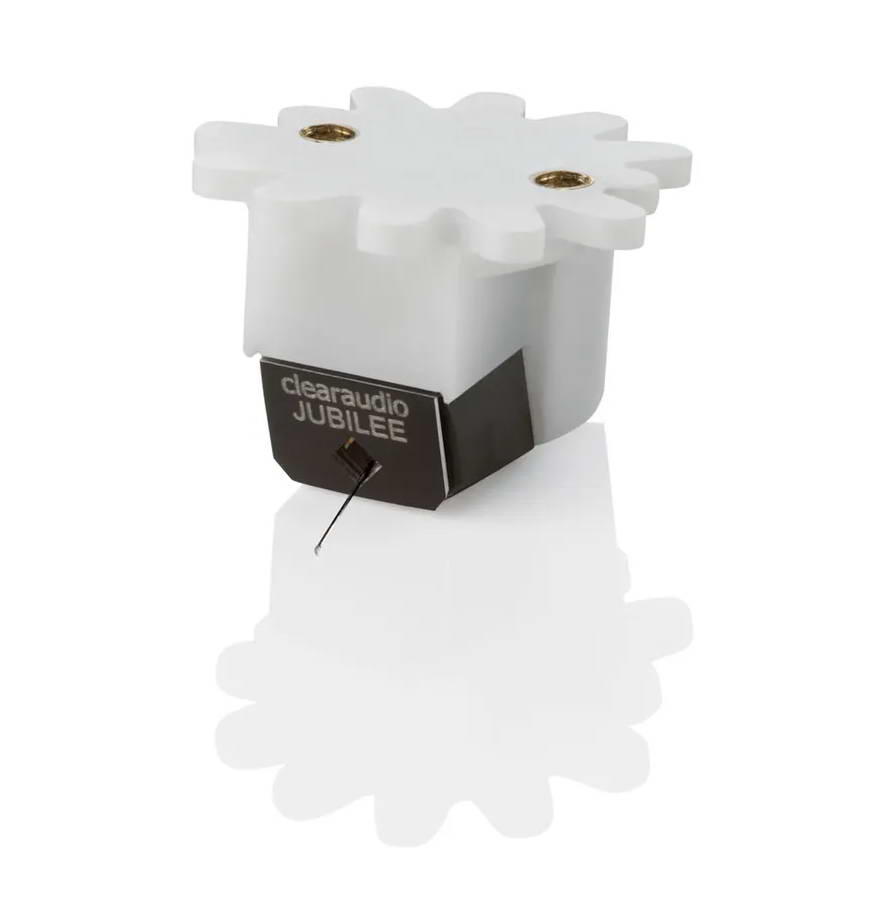

Diamond Jubilee MC
The Diamond Jubilee MC is the result of continuous development towards the highest precision, dynamics and tonal fidelity. Its cartridge body is made from zirconium oxide – one of the hardest and most stable materials currently used in industry.
€26,000.00
Επικοινωνήστε μαζί μας
Zirconium oxide as foundation
The exceptional resonance stability of zirconium oxide minimises unwanted vibrations and supports a pure, unadulterated sound. Thanks to a manufacturing tolerance of up to 0.001 millimetres, the Diamond Jubilee MC achieves the highest precision.
Technology from the Goldfinger Statement
The Diamond Jubilee MC adopts proven technologies from the Goldfinger Statement V2.1 and takes them further. These include particularly thin 24-carat gold wires for the coils as well as the integrated high-frequency shielding, which was first used in the Goldfinger Statement V1.
Optimised generator technology
An optimised magnet arrangement with particularly powerful neodymium magnets and revised coil geometry ensures high dynamics and sonic resolution. The newly designed cantilever with optimised angle additionally improves tracking accuracy.
Micro-HD diamond
The precisely ground Micro-HD diamond ensures exceptionally accurate groove tracking behaviour and captures even the finest sonic details.
Intro Precision down to the last detail.
ContentEvery component of the Diamond Jubilee MC is carefully selected and processed. Channel separation of over 35 dB and channel balance of less than 0.15 dB form the foundation for impressive stereo reproduction with clarity, dynamics and richness of detail.
https://www.clearaudio.de/en/produkt-tonabnehmer-diamond-jubilee-mc/
Επιπλέον πληροφορίες
| Κατασκευαστές | |
|---|---|
| Είδος Κεφαλής | |
| Χρήση Κεφαλής |
| TOTAL SYSTEM MASS: | ~ 9.25 g (± 2 g) |
| FREQUENCY RESPONSE: | 20 Hz – 20 kHz |
| OUTPUT VOLTAGE (AT 5 CM/SEC.): | 0.6 – 0.65 mV |
| CHANNEL SEPARATION: | > 35 dB |
| CHANNEL BALANCE: | < 0.15 dB |
| TRACKING ABILITY: | ≤ 100 µm |
| RECOMMENDED TRACKING FORCE: | 2.8 g (± 0.2 g) |
| CARTRIDGE IMPEDANCE: | 50 Ω |
| CANTILEVER / DIAMOND CUT: | Boron / clearaudio Prime Line PLUS |
| STYLUS COMPLIANCE: | 18 µ/mN |
| COIL ARRANGEMENT: | Absolutely Pivot-Symmetrical |
| COIL MATERIAL: | 24 Carat Gold |
| CARTRIDGE BODY: | Zirconia |
| MANUFACTURER’S WARRANTY*: | 2 Years* * If the completed warranty card is returned to clearaudio within 14 days of purchase. |
